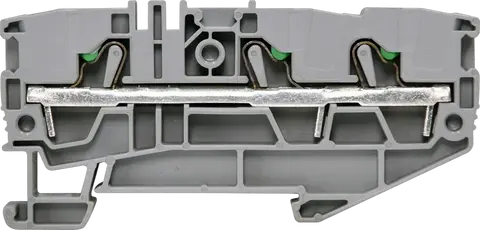

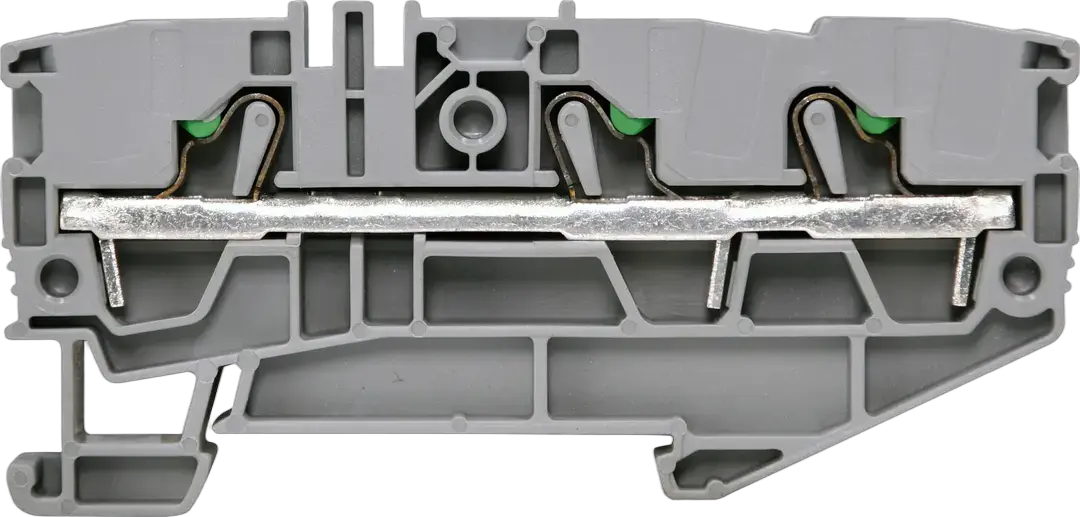

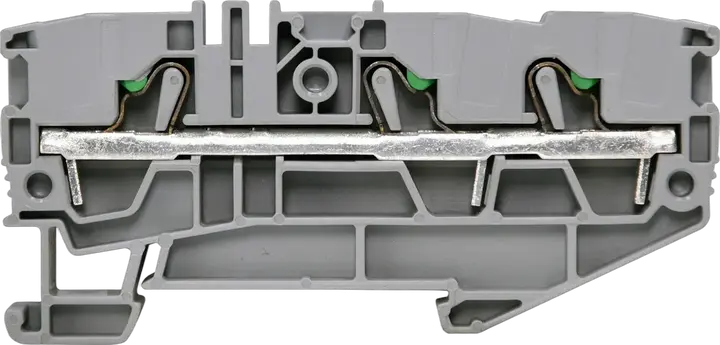

ESH-EFC.6/1+2 řadová svorka

ETI kód:: 003903350
Jmenovité AC napětí:: 1000 V
Jmenovité DC napětí:: 1000 V
Typ uchycení:: TH 35
Barva:: Šedý

Produkt

EAN code for a single product: 3838400117816
Hmotnost: 0,022 kg
Net width: 16 mm
Net height: 85 mm
Net depth: 33 mm
Stock unit of measure: pcs

Přepravní balení

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 3838400104465
Transport packaging weight: 0,4 kg
Transport Packaging Dimensions Height: 150 mm
Transport Packaging Dimensions Width: 70 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 11 200 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Ano
Width: 8,2 mm
Material insulation body: Thermoplastic
Rated current In: 41 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 3
Closing plate required: Ano
Type of electrical connection 2: Spring clamp connection
Rated voltage: 1 000 V
Colour: Grey
Height: 46,7 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 130 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²

Klasifikace ETIM – verze 9.0
