001901281

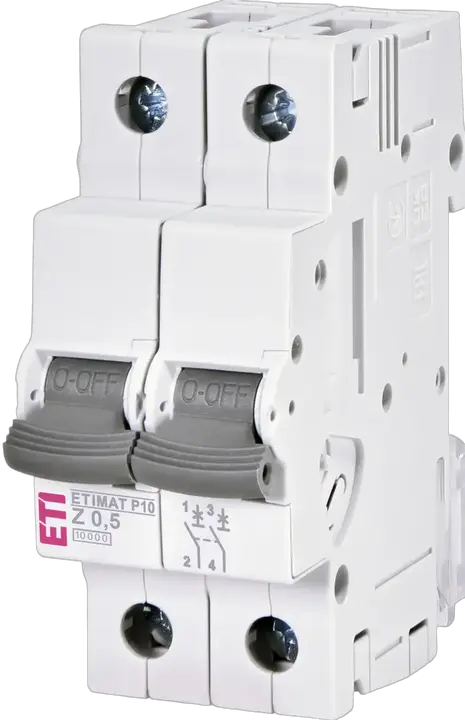

ETIMAT P10 2p Z0,5 jistič

ETI kód:: 001901281
Aplikace:: IEC/EN 60947-2
Jmenovitý proud:: 0.5 A
Vypínací charakteristika:: Z
Počet pólů:: 2
Zkratová odolnost:: 10 kA
Typ napětí:: AC
Jmenovité impulsní výdržné napětí (kV):: 6 kV
Jmenovité AC napětí:: 415 V
Jmenovitá frekvence (Hz):: 50/60 Hz
Jmenovitý průřez (mm²):: 1-25 mm²
Normy:: IEC/EN 60947-2
Funkce:: MCB

Příslušenství

Produkt

EAN code for a single product: 3838895960287
Hmotnost: 249 g
Net width: 35,6 mm
Net height: 89 mm
Net depth: 74,74 mm
Stock unit of measure: pcs

Základní balení

Basic packaging quantity: 6 pcs
EAN code for a basic packaging: 3838895960294
Basic packaging weight: 1,55 kg
Basic Packaging Dimensions Height: 79 mm
Basic Packaging Dimensions Width: 91 mm
Basic Packaging Dimensions Depth: 220 mm
Basic packaging volume: 1,582 dm³

Přepravní balení

Transport packaging quantity: 54 pcs
EAN code for a transport packaging: 3838895960300
Transport packaging weight: 14,303 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 2 808 pcs
Customs tariff: 85362010

Additional equipment possible: Ano
Rated insulation voltage Ui: 500 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Built-in depth: 70 mm
Voltage type: AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Rated impulse withstand voltage Uimp: 6 kV
Degree of protection (IP): IP20
Release characteristic: Z
Over voltage category: 3
Number of poles (total): 2
Pollution degree: 2
Number of protected poles: 2
Rated voltage: 415 V
Current limiting class: 3
Rated current: 0,5 A
Flush-mounted installation: Ano
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Width in number of modular spacings: 2
Frequency(Min): 50 Hz
Ambient temperature during operating(Min): -40 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Frequency(Max): 60
Ambient temperature during operating(Max): 70 °C
