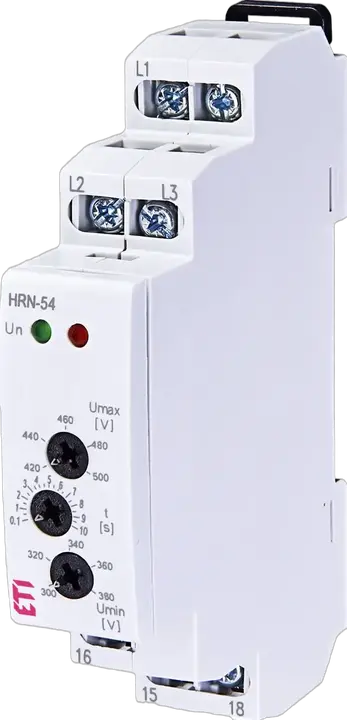

HRN-54 ovládací relé

ETI kód:: 002471416
Funkce:: Monitoring and Control relays
Aplikace:: Monitors phase sequence and phase loss in 3 × 400 V three-phase networks, providing protection against damage caused by incorrect supply conditions
Typ ovládání:: Sequence phase, Phase failure
Napájecí napětí (V):: 400 V
Typ napětí:: AC
Max contact current (A):: 8 A
Jmenovitý proud:: 8 A
Maximální nosnost AC1 (VA):: 2 000 VA
Clamping cross-section (mm²):: 0.5-2.5 mm²
Typ uchycení:: TH 35
Stupeň krytí IP:: IP40
Počet NO kontaktů:: 1
Počet přepínacích kontaktů:: 1
Počet NC kontaktů:: 1
Typ kontaktů:: 1xCO
Počet kontaktů:: 1

Příslušenství

Produkt

Hmotnost: 0,07 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,26 mm
Stock unit of measure: pcs

Základní balení

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895452195
Basic packaging weight: 0,06 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 25 mm
Basic packaging volume: 0,17 dm³

Přepravní balení

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895452201
Transport packaging weight: 0,74 kg
Transport Packaging Dimensions Height: 102 mm
Transport Packaging Dimensions Width: 284 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 4 600 pcs
Customs tariff: 85364900

Single-phase under voltage possible: ✓
Width: 18 mm
Three-phase under voltage possible: ✓
Single-phase hysteresis possible: ✓
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,1 s
Voltage type (operating voltage): AC
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Three-phase over voltage possible: ✓
Type of voltage measuring range: AC
Rated switch current: 8 A
Single-phase over voltage possible: ✓
Depth: 64 mm
Three-phase hysteresis possible: ✓
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 400 V
Operating voltage AC 60 Hz(Min): 400 V
Supply voltage AC 60 Hz(Min): 400 V
Voltage measuring range 2(Min): 300 V
Voltage measuring range 1(Min): 420 V
Supply voltage AC 50 Hz(Min): 400 V
Voltage measuring range 1(Max): 500 V
Supply voltage AC 50 Hz(Max): 400 V
Operating voltage AC 60 Hz(Max): 400 V
Operating voltage AC 50 Hz(Max): 400 V
Voltage measuring range 2(Max): 380 V
Supply voltage AC 60 Hz(Max): 400 V
