002440622

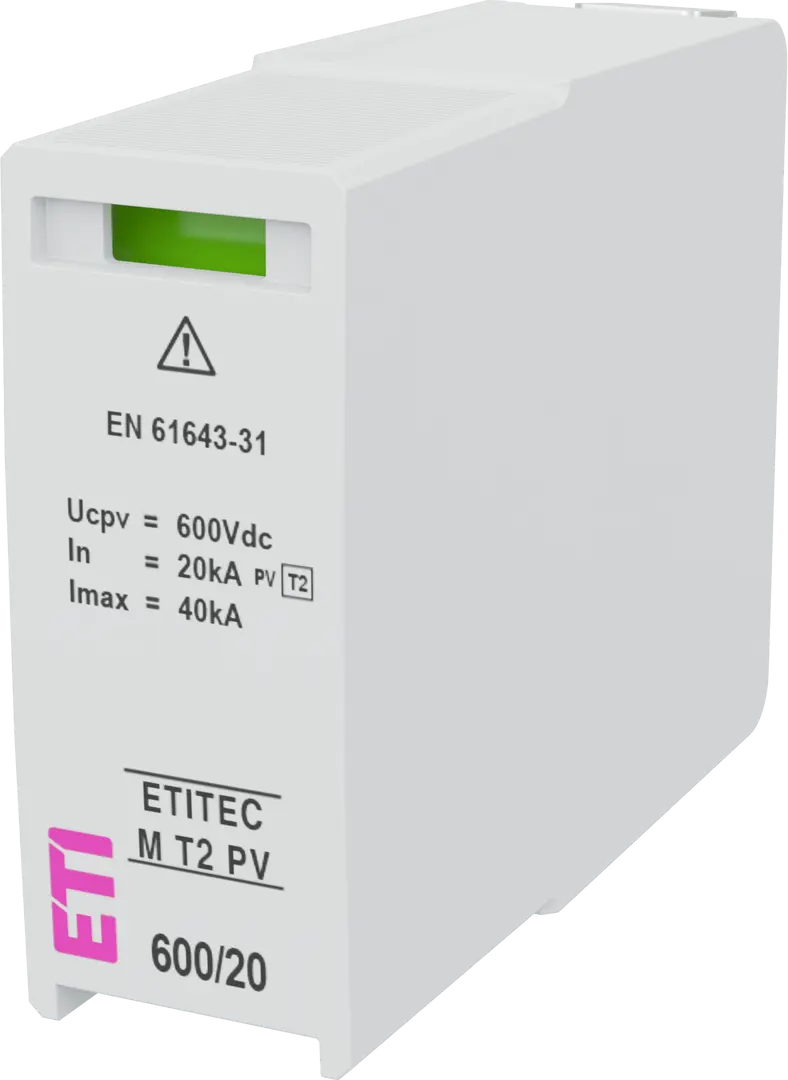

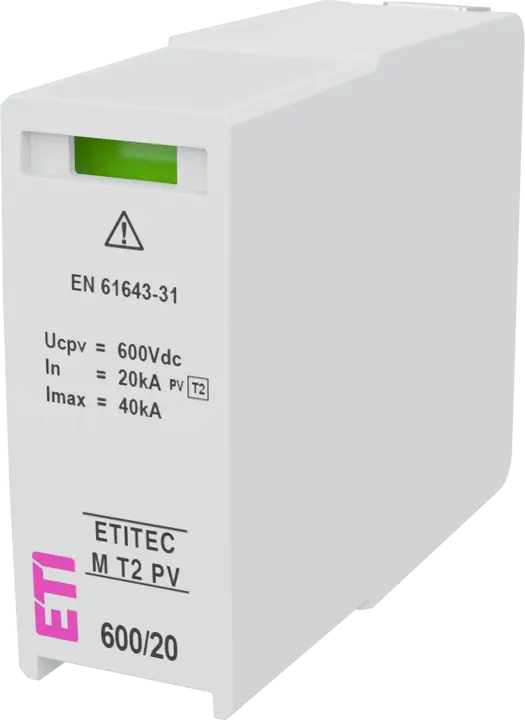

Obrázek MOD. MT2 PV 600/20

MOD. MT2 PV 600/20 svodič přepětí

ETI kód:: 002440622
Funkce:: SPD Module
Typ sítě:: PV
Skupina katalogu:: ETITEC M PV
Montáž:: PV protection
Stupeň krytí IP:: IP20
Svodový proud:: Yes
Aplikovaná technologie:: MOV
Typ:: T2
DC max continous operating voltage Uc:: 600 V
Pro použití s:: ETITEC M T2 PV
Typ proudu:: DC
In (8/20):: 20 kA

Produkt

Hmotnost: 0,061 kg
Stock unit of measure: pcs

Základní balení

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895877967
Basic packaging weight: 0,08 kg
Basic Packaging Dimensions Height: 82 mm
Basic Packaging Dimensions Width: 24 mm
Basic Packaging Dimensions Depth: 50 mm
Basic packaging volume: 0,098 dm³

Přepravní balení

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895877974
Transport packaging weight: 2,001 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4,412 dm³
Pallet quantity: 5 424 pcs
Customs tariff: 85363090

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 600 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Short-circuit breaking capacity (Isccr): 11 kA
Signalling at the device: Optical
Category type 2: Ano
Nominal discharge surge current (8/20): 20 kA
System configuration DC: Ano

Klasifikace ETIM – verze 9.0
