004667036
Zastaralý

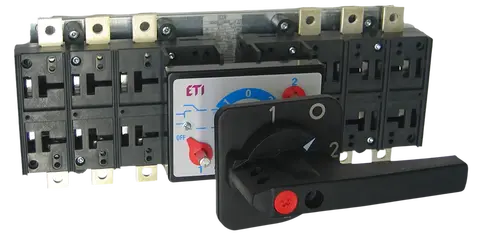

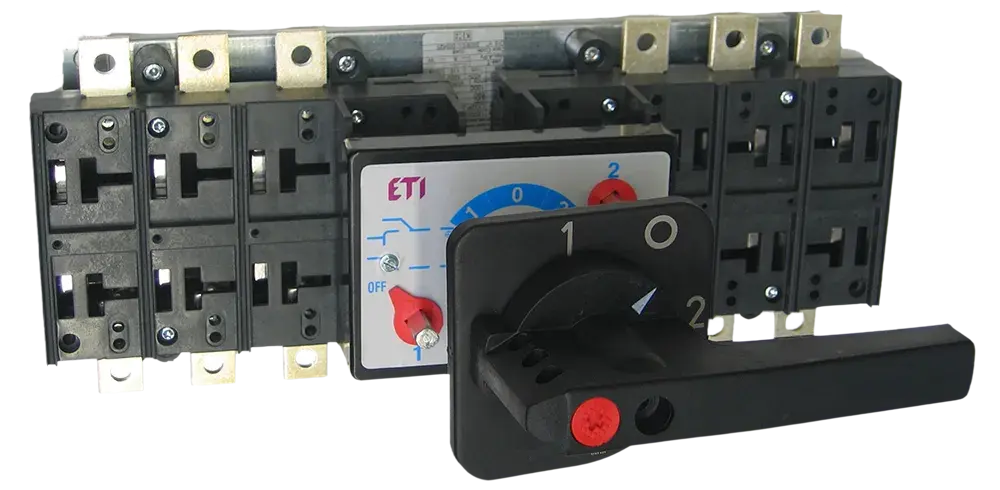

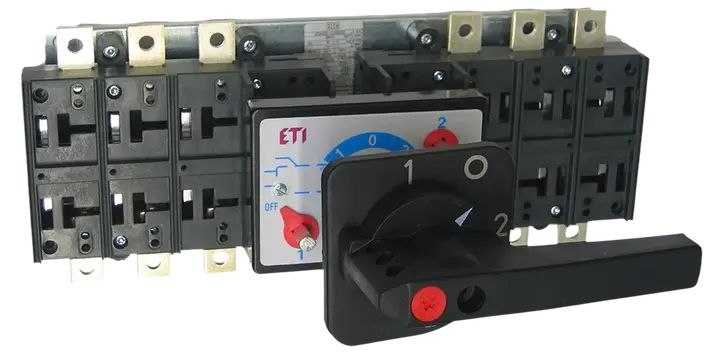

* LA5/D 1250A 4p COH prepinač
- ETI kód:
- 004667036
- Funkce:
- Manual change-over horizontal switches (1-0-2) with door interlock handle
- Jmenovitý proud:
- 1250 A
- Typ:
- Door Interlock handle
- Počet pólů:
- 4
- Skupina katalogu:
- LA COH
3 Dokumenty
8 Logistika
Produkt
- Hmotnost
- 22 kg
- Stock unit of measure
- pcs
Přepravní balení
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895476092
- Transport packaging weight
- 29 kg
- Transport packaging volume
- 82 dm³
- Pallet quantity
- 22 pcs
- Customs tariff
- 85365080
10 ETIM
- Version as maintenance-/service switch
- Ano
- Max. rated operation voltage Ue AC
- 1 000 V
- Rated permanent current Iu
- 1 250 A
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 4
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 630 kW
- Suitable for distribution board installation
- Ano
- Version as main switch
- Ano
Klasifikace ETIM – verze 9.0
