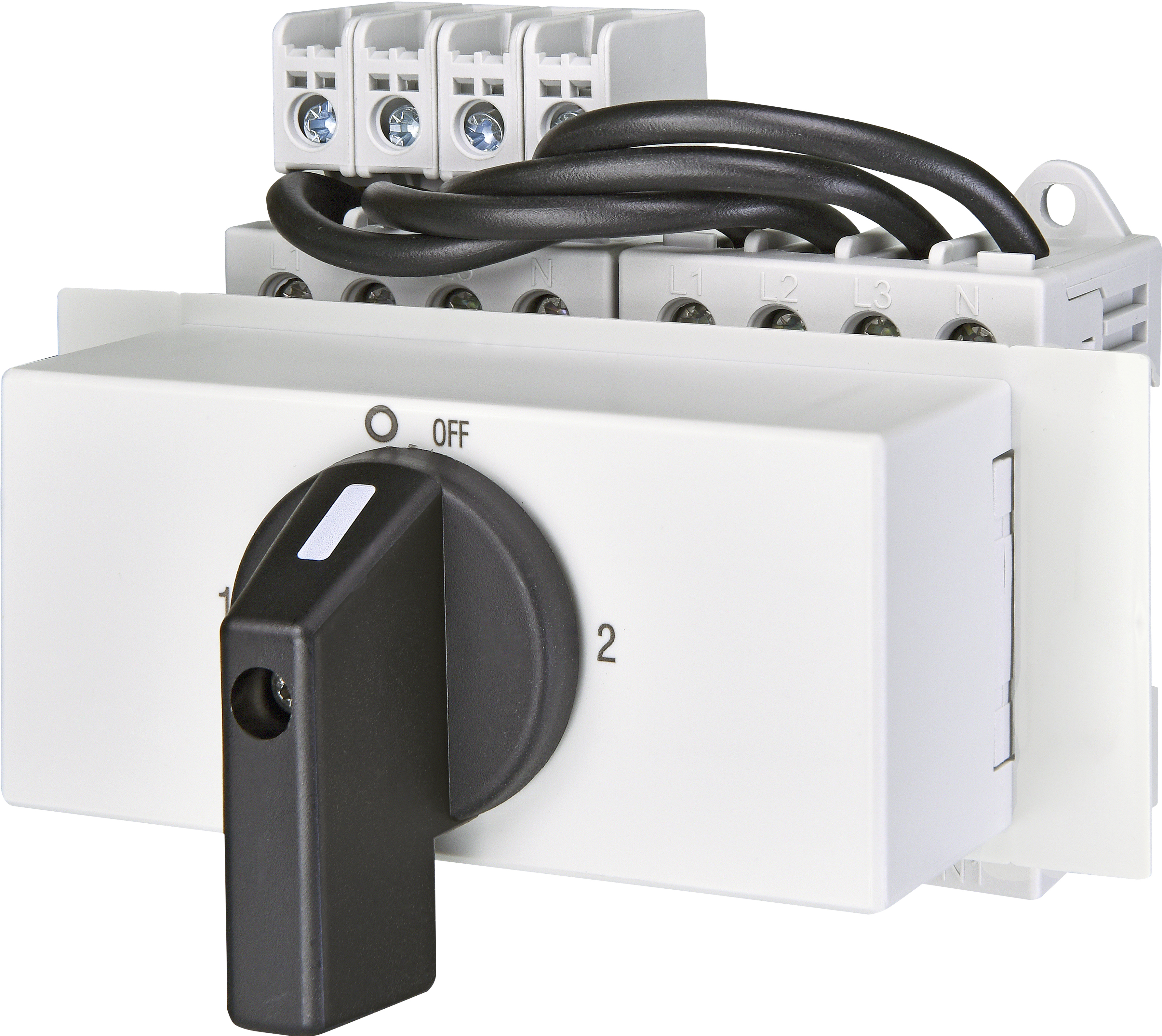

LAS 25 4p COP 004664205
Specifikace
- Kód ETI:
- 004664205
- Popis:
- LAS 25 4p COP
- Funkce:
- Manuální přepínací spínače (1-0-2)
- Jmenovitý proud (A):
- 25
- Typ:
- Namontované DIN lišty
- Počet pólů:
- 4
- Skupina katalogu:
- LAS COP
Dokumenty
Logistické údaje
Produkt
- Celní sazba
- 85365080
- logis_net_width
- 125 mm
- logis_net_height
- 96 mm
- logis_net_depth
- 116 mm
Přepravní balení
- Množství
- 1
- EAN
- 3838895489108
- Váha
- 0.32 kg
- Množství - transport
- 2667
Klasifikace ETIM
- Klasifikace
- EC000216
- Název třídy
- Switch disconnector
- Version as main switch
- Ne
- Version as maintenance-/service switch
- Ne
- Version as safety switch
- Ne
- Version as emergency stop installation
- Ne
- Version as reversing switch
- Ano
- Max. rated operation voltage Ue AC
- 690V
- Rated operating voltage
- 220…690V
- Rated permanent current Iu
- 25A
- Rated permanent current at AC-21, 400 V
- 25A
- Rated short-time withstand current lcw
- 3kA
- Rated operation power at AC-23, 400 V
- 10kW
- Switching power at 400 V
- 10kW
- Conditioned rated short-circuit current Iq
- 10kA
- Motor drive optional
- Ne
- Motor drive integrated
- Ne
- Voltage release optional
- Ne
- Device construction
- Built-in device fixed built-in technique
- Suitable for floor mounting
- Ano
- Suitable for front mounting 4-hole
- Ne
- Suitable for front mounting centre
- Ne
- Suitable for distribution board installation
- Ano
- Suitable for intermediate mounting
- Ne
- Colour control element
- Black
- Type of control element
- Short thumb-grip
- Interlockable
- Ne
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP40
